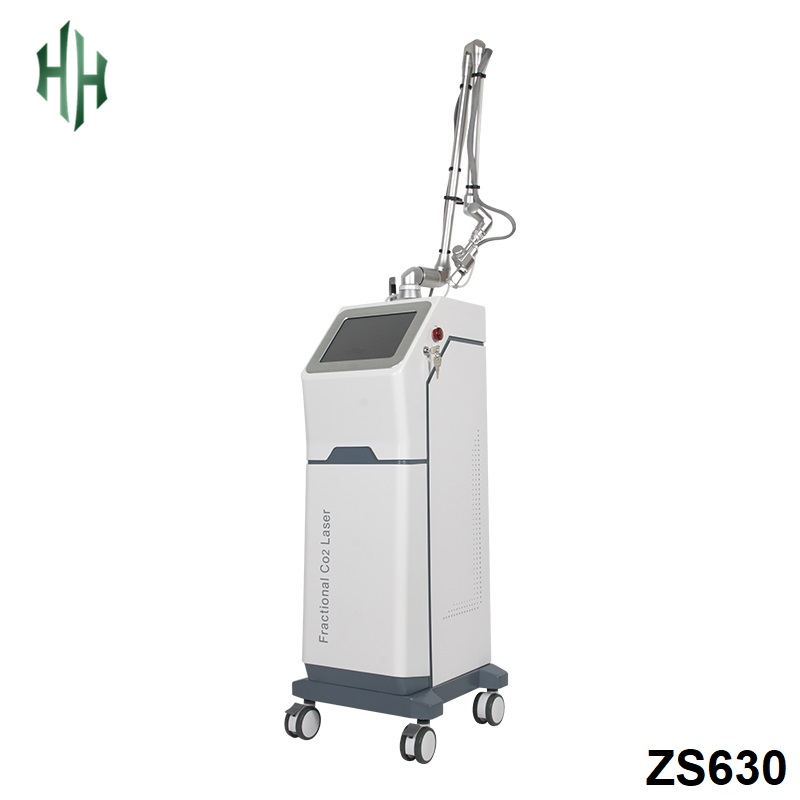

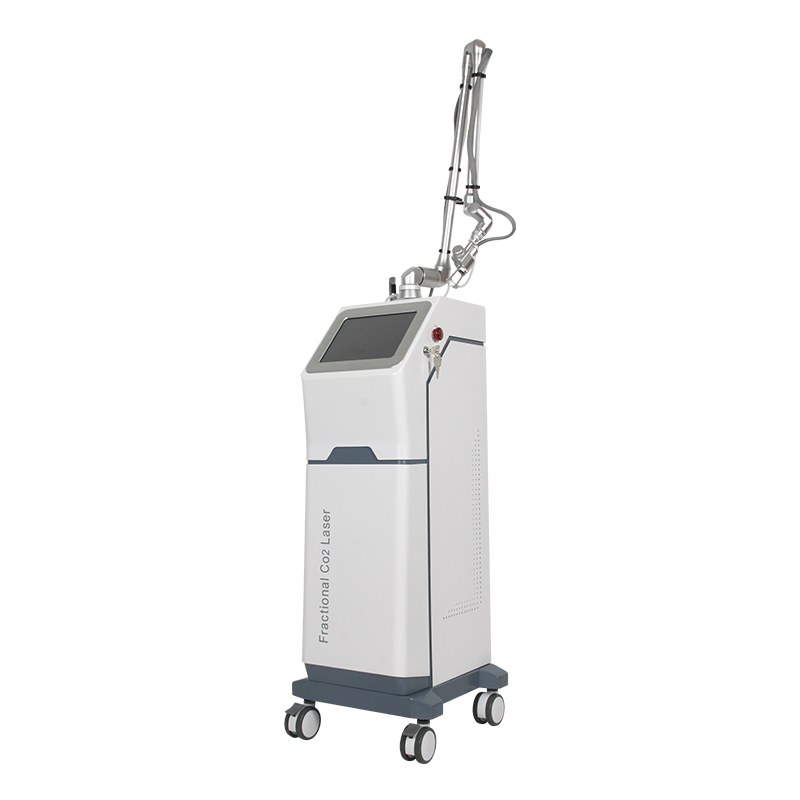

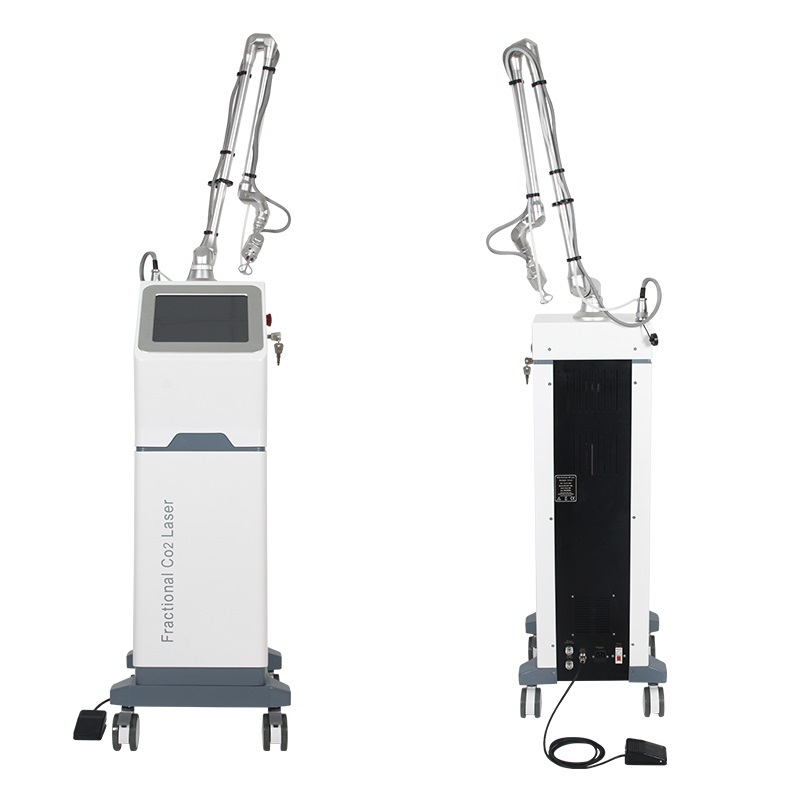

Name: Vertical Stretch marks/Wrinkle Removal Pixel Laser Beauty Machine
Brand: Huanhong Technology
SKU: ZS630

Description
FAQ

Product Paramenters

Working mode	single pulse, continuous pulse, repeated pulse, ultra pulse
Output power	0-60W（adjustable）
Input power	450VA
Laser type	Sealed-off CO2 laser
Laser wavelength	10.6μm
Divergence angle	4mrad
Focused spot diameter	≤0.4mm

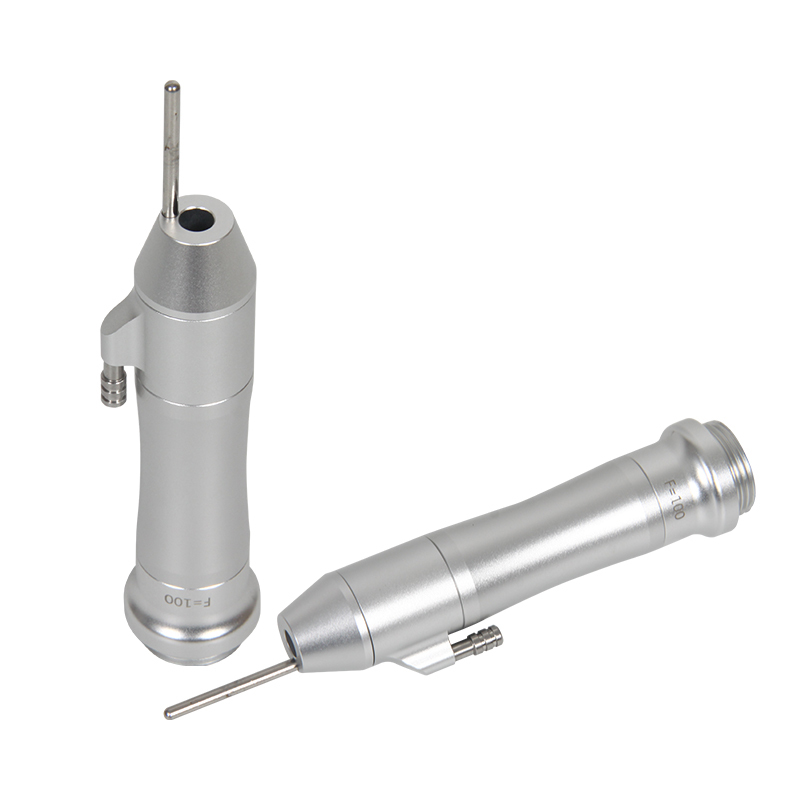

Tool bit focus	F=100mm(optional)
Pulse width	0.02-0.99s
Aiming beam	Red diode laser(650nm, 2mW)

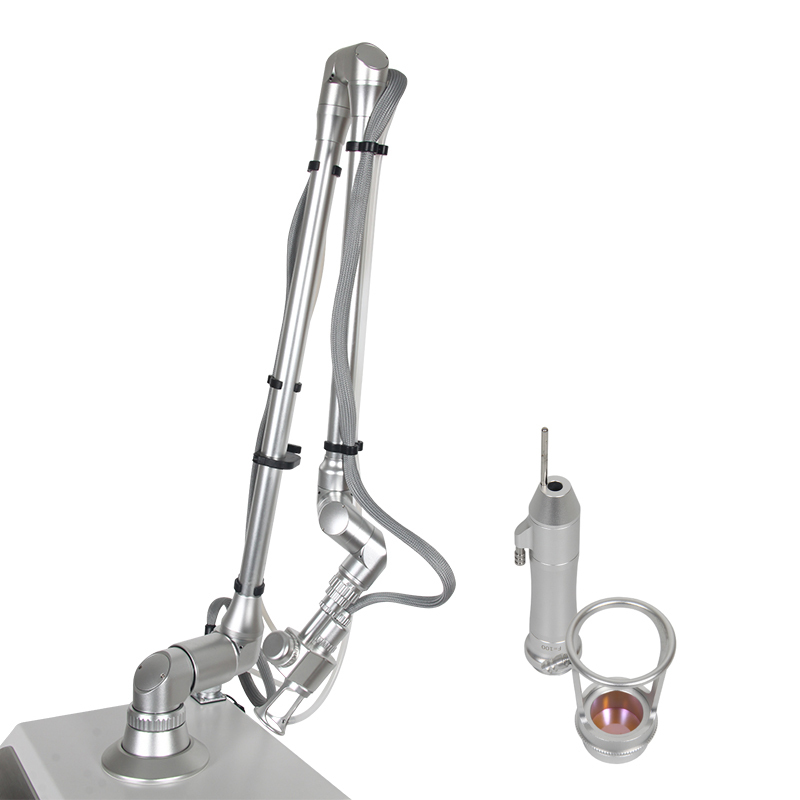

Transmission system	Spring-balanced 7 joint arms
Cooling system	Inside-circle coolant
Display screen	LCD
Working environment temperature	5-40℃
Humidity	＜80%
Air pressure	86Kpa-106 Kpa
Input power	AC220V±10%, 50Hz
Preheating-time	＞5min
Electromagnet	No electromagnet interrupt
other working environment	No obvious shaking or airflow
N. W.	37kgs
Size	183 (with arms) ×45×40cm

Working Theory

The wavelength of CO2 laser is 10.6μm, which can be fully absorbed by human biology tissue (all the skin are available). The sealed-off fractional CO2 laser, whose output laser-light will be transferred by articulated arm, which has better sense of direction and higher energy density. The CO2 laser operates in the invisible infrared waveband, and an aiming beam is required to see where the treatment beam will impact tissue more recently from a visible red diode laser. When the laser beam go through the focus lens, the produced heat will gasify the target tissue. With fractional laser resurfacing the laser beam is broken up or fractionated into many small micro beams which are separated so that when they strike the skin surface small areas of the skin between the beams are not hit by the laser and left intact. These small areas of untreated skin promote a much more rapid recovery and healing with less risk of complications. The small areas treated by the fractional micro beams, called micro treatment zones, cause sufficient laser injury to promote new collagen production and resultant facial skin rejuvenation.

Application

(1) Remove acne and acne marks;
(2) Eliminate dry pattern, fishtail, etc around the eyes;
(3) anti-aging: skin firming, wrinkle removal, improve the skin condition;
(4) Treatment of pigmentary lesions such as freckles and ostrum miracles;
(5) Scar: treatment of depressed, old dispersion, convex vascular / fibrous scar;
(6) Stretch marks.

Product performance

Constant temperature system Intelligent Al chip , precise temperature control Ensure a constant temperature of 4 ℃ Output speed Frequency 1-10HZ controllable , pulse output Safety performance When the ratio between the energy value and the frequency value does not comply with the safe output energy density , the system will automatically adjust the safe state.

How is your after-sale service?

We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (whatsapp, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.

Will you teach how to use the machine?

Yes, we will provide a complete user manual and usage video for instruction and application. And 24/7 online consultant service ensure you whatever problem and whenever you meet, you can solve easily. It is easy to operate by anyone with the instructions.

Do we support customization?

Yes, We support to add private labeling and logo customization. OEM/ODM are available.

How about the shipment?

The machine will be shipped within 5-7 working days after receive your payment. if the machine is on stock, which will ship out soon after confirmed the shipping address information.

Do you have any warranty?

1 year for the host machine and 6 months for the spare parts. As the manufacturer, we can provide you with lifelong technical support. We promise to deal with all the problems you meet during the operation. If necessary, we will send you spare parts for free within the warranty.

What is the payment method?

T/T, credit card, PayPal, western union and etc. You can see all the payment method on the payment link.
